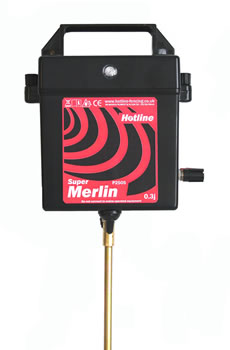

This unit is ideal for strip grazing cattle, horse paddock fencing, using with electrified sheep nets and protecting pheasant pens. The P250s Merlin electric fence energiser can use any voltage of rechargeable battery from 6v - 12v, although the unit's most efficient when working on a 12v leisure battery. The Amp/hr rating of the battery will determine the charging interval, for example a 55amp/hr battery will require charging approximately every six weeks. If necessary 6v or 9v batteries can be used while the main battery is being recharged. As the battery for the P250/S Merlin is placed outside the fencing unit, ensure that all the leads are connected correctly to the battery, earth stake and fence line. A single ground spike supports the fencer. This provides a suitable earth on short lengths of fencing wire but on longer runs over 300m an independent earthing stake should be used. The LED will flash green when the unit is working correctly, but will change to red when the battery requires re-charging. A buzzer will sound if the battery terminals are connected incorrectly.
• 0.3 Stored joules • versatile 6, 9 or 12v input • 2.6km Fence length • Battery life (12v, 85ah) approx. 12 weeks • LED monitor indicating battery status
